Product Description:

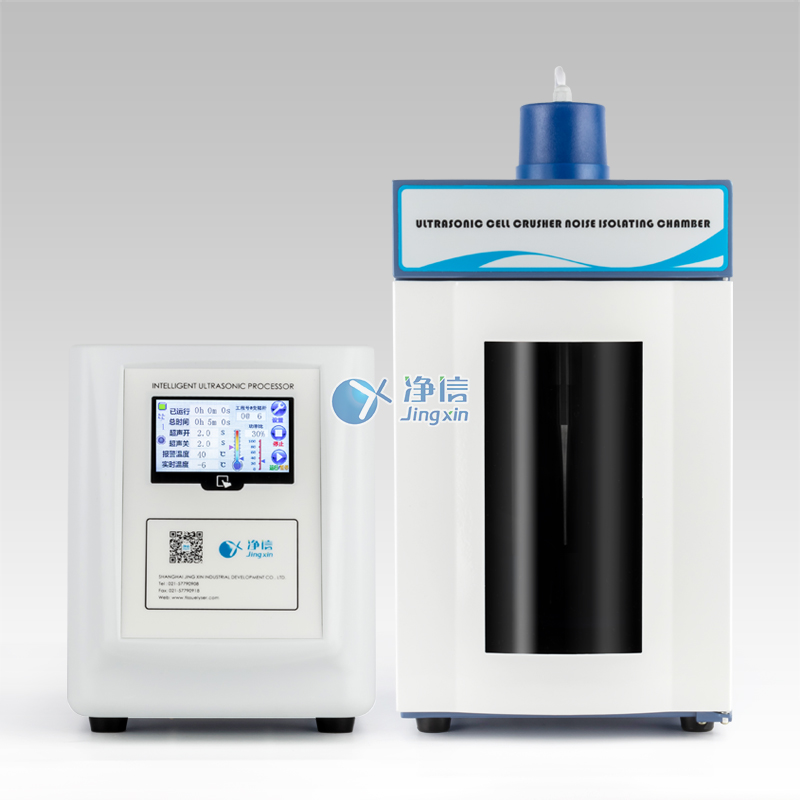

Ultrasonic cell crusher (pulverizer) is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and ultrasonically treat substances. It can be used for the crushing of various animal and plant cells and virus cells. At the same time, it can be used for emulsification, separation, homogenization, extraction, defoaming, cleaning and accelerating chemical reactions, etc. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
Features of Ultrasonic Crusher:
1. A new generation of products, complete functions, beautiful appearance, reliable performance, using 4.3-inch TFT touch screen display
2. High degree of intelligence, centralized control by the central computer, ultrasonic time and power can be set arbitrarily
3. Sample temperature detection display, frequency microcomputer tracking, automatic fault alarm
4. A matching export hot-selling soundproof box can reduce the noise by more than 70%
5. A set of titanium alloy horns can be used for continuous ultrasound for more than one hour
technical parameter:
Main parameters | Parameter range |
Display method: | 4.3 inch TFT touch screen display, optional 7 inch full touch screen |
Single ultrasound time: | 0.1-9.9S |
Single gap time: | 0.1-9.9S |
Total working time: | 1-999M |
Frequency: | 20-25KHz |
power: | 10- 650W（1%-99%）可调 adjustable |
Broken capacity: | (need to choose the corresponding horn) |
Temperature control range: | Room temperature -90 degrees (optional low temperature constant temperature) |
The alarm functions are: | Temperature, time, overload, no load |
Random horn: | Φ6 |
Optional horn: | Φ2、3、8、10、12 |
Duty cycle: | 0.1-99.9% |
power supply: | 220V±5%/ 50Hz (110V can be customized) |
Power box + transducer weight: | 16kg |
Power supply chassis size and net weight: | 40×28×22（CM）;14kg |
