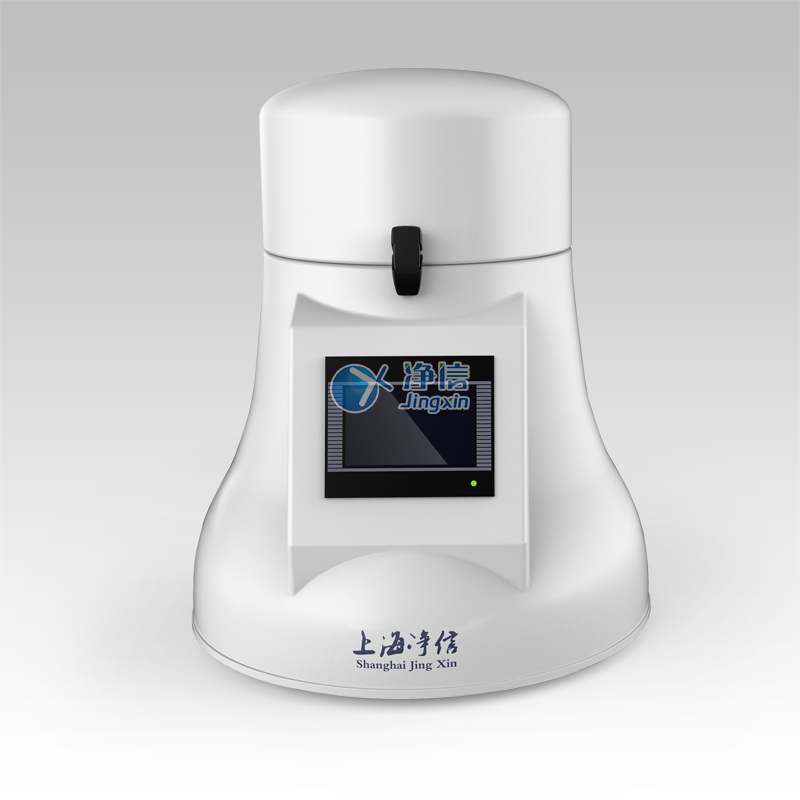

High Throughput Grinder

Model:XM-GTL500

Brand:Shanghai Jingxin

Specifications :Set

Introduction:Compared with other existing sample preparation methods, this grinder has the advantages of wide versatility, high efficiency and flexibility.

Shanghai Jingxin?'s high-throughput tissue grinder (patented product, counterfeit must be investigated! ZL2018300207398) is a special, fast, high-efficiency, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).

Technical features:

Compared with other existing sample preparation methods, the grinder has the advantages of wide versatility, high efficiency and flexibility. The system avoids the laborious, time-consuming, inefficient and many other shortcomings of traditional methods such as grinding, homogenization, and ultrasonic treatment, and can efficiently, quickly and stably lyse and purify nucleic acids and proteins of various types of samples.

Grindable samples:

1. Plant tissues: roots, stems, leaves, flowers, fruits, seeds, etc.

2. Animal tissues: brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.

3. Fungal bacteria: yeast, Escherichia coli, etc.

4. Food and drugs: all kinds of food, pills, etc.

5. Volatile samples: coal, oil shale, wax products, etc.

6. Plastics, polymers: PE, PS, textiles, resins, etc.

Features:

The grinding machine adopts a special vertical up-down integrated vibration mode, through the high-frequency reciprocating vibration, impact and shearing of grinding beads (zirconia, steel balls, glass beads, ceramic beads). achieve goals quickly. Make the ground samples more fully, more uniform, better sample repeatability, no cross-contamination between samples

1. The number of operations is large and the effect is good

Efficient and fast work can complete the grinding of 2×24, 2×48, 4×96 samples within 1 minute. Save time and effort, and the difference between batches and batches is small. The extracted protein has higher specific activity and longer nucleic acid fragments.

2. No cross contamination

The sample tube is in a fully closed state during the crushing process, and disposable centrifuge tubes and beads can be used. The sample remains intact in the tube to avoid cross-contamination between samples and external contamination.

3. Easy to operate

3.1 The built-in program controller can set parameters such as grinding time and rotor vibration frequency;

3.2 Humanized operation interface.

4. Good stability

4.1 The vertical oscillation method is adopted, the grinding is more sufficient and the stability is better;

4.2 During the operation of the instrument, the noise is less than 50dB, which will not interfere with other experiments or instruments.

5. Convenient low temperature operation

When a cryogenic grinding environment is required, the adapter with the sample can be immersed in liquid nitrogen to cool for 1-2 minutes. After taking it out, move it to the host and quickly fix it to start grinding. There is no need to re-freeze it, saving liquid nitrogen.

6. Good repeatability

The same procedure is set for the same tissue sample to obtain the same grinding effect. Short working time, sample temperature does not rise

Operating procedures:

The main parameters

parameter range

Application areas:

Tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking

Sample processing:

384 samples can be processed simultaneously in 15 seconds, including 12- and 24-bit liquid nitrogen freezing adapters

Compatible sample size:

384*(0.2-0.5ML) /192*2ML /48*5ML/24*(7-15)ML /4*25ML /2*50ML, various specifications of grinding tubes can be customized

Touch screen display:

It can be operated conveniently and intuitively, and can be upgraded to touch screen display operation.

Storing data:

Ten groups of experimental data can be stored. According to different experimental samples, animal heart, spleen, lung, kidney, bone, skin, and hair patterns are set.

Shockproof principle:

The German innovative schleifen-1 working method has an innovative anti-shock principle, as well as a special vertical integrated movement method, and an innovative grinding bead movement method to ensure ideal sample processing and instant crushing effect.

Feed size:

No requirement, adjust according to adapter

Discharge particle size:

~5μm

Number of grinding platforms (number of grinding jars that can be accepted)

>2

Fastening device with automatic centering

Yes

Homogenization speed and time:

0—70 HZ/second, working time: 0 seconds-9999 minutes, users can set it by themselves;

Grinding Ball Diameter:

0.1-30mm

Grinding Ball Material:

Alloy steel, chrome steel, zirconia, tungsten carbide, quartz sand;

accelerate:

Reach maximum speed in 2 seconds

slow down:

Reach lower speed in 2 seconds

Noise level:

<55db

Grinding method:

Wet grinding, dry grinding, cryogenic grinding

Refrigeration:

With the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air cooler refrigeration

Adapter Material:

Adapter material: PTFE or alloy steel

Full protection:

Fastening device with automatic centering, safety lock when working, full protection

Grinding Kit Materials:

Rigid Rigid, Teflon (Teflon) Zirconia

Instrument size:

400mm*340mm*530mm

Instrument weight:

45kg


Basic configuration:

? One XM-GTL500 host

? One set of 2ml adapter, one set of 2ml refrigeration adapter, one set of 2ml coolant adapter (optional)

? 1000 5MM grinding beads. 1000 5MM ceramic grinding beads

? A set of special beading gun (optional)

Optional accessories:

Jingxin is equipped with complete DNA, RNA and protein extraction kits for various samples of animals, plants, microorganisms, etc., which can extract target components quickly, efficiently, stably and in batches.

Extract objects

Jingxin matching kit

Animal tissue grinder

DNA

XM-1

RNA

XM-2

protein

XM-3

Planet tissue grinder

DNA

XM-4

RNA

XM-5

protein

XM-6

microorganism

DNA

XM-7

RNA

XM-8

protein

XM-9


Remark

* You can choose the matching XM kit to quickly, efficiently, stably, and batch extract DNA/RNA proteins from e than 30


2020.12.21
高通量组织研磨仪研磨肿瘤组织提取RNA
研磨破碎肿瘤组织细胞(如胰腺、肺、肝等器官的肿瘤组织),后续提取其RNA。
2020.12.21
玉米种子高通量研磨提取DNA、RNA、蛋白质
大量提取玉米种子核酸和蛋白质时,离不开对样本的高通量研磨。上海净信经过反复研究检测,研发出的全自动样品快速研磨仪有效实现了高通量研磨、研磨效果出色等特点。
2020.12.21
高通量组织研磨仪对动物器官组织的研磨
高通量组织研磨仪对动物器官组织的研磨
2020.12.21
高通量组织研磨仪对经济作物水稻、小麦种子的研磨
农产品及种子检验,经常需要对将植物种子进行研磨以获得DNA、RNA或蛋白质等生物分子,从而进行后续的分析和检测。随着实验室科研进度的日益加快,手动研磨已无法满足科研工作的需要。
2020.12.21
高通量组织研磨仪针对中药药材DNA提取的研磨方法
通过提取药材的DNA,进行DNA条形码分子对照,进而鉴定中药。
2020.12.21
高通量组织研磨仪对包涵体(大肠杆菌)蛋白质提取的研磨方法
通过研磨珠的撞击,破碎大肠杆菌的细胞壁,使其内容物流出,进而提取其蛋白质。
2020.12.21
全自动样品研磨仪---超高通量研磨水稻
雨足稻畦春水满,插秧未半青短短。小满一过,便是插秧忙。春播秋收,碧波荡漾。水稻是稻属谷类作物,是中国居民的主食,早在七千年前中国长江流域的先民们就曾种植水稻。目前国内的水稻种植面积常规稻是2.45亿亩,而杂交稻的种植面积是2亿亩。而杂交水稻是不是转基因,转基因能不能吃呢?
2020.12.21
高通量组织研磨仪针对检测心肺组织的药物代谢的研磨方法
通过对心肺组织的加药及药后的组织破碎检测,计算组织的药物代谢情况。
2020.12.21
上海净信Tissuelyser高通量组织研磨仪在低温破碎酵母细胞中的使用说明
使用上海净信Tissuelyser全自动样品快速研磨仪对酵母进行研磨,将不锈钢钢珠和样本分别装入研磨钢罐中,然后放入到用聚苯乙烯盒子盛放的液氮中,当预冷冻过程结束后,时间一分钟左右,或者直到原来沸腾的液体氮恢复平静,将破碎罐从液氮中取出,并要将破碎罐沾有的液体全部清理干净,以避免在破碎过程中发生爆炸。研磨钢罐最好用坩埚钳或大镊子夹取出来,而且通常要带经过冷冻的手套,冻伤以免。
2020.12.21
高通量组织研磨仪对真菌细胞的破壁及DNA提取
随着分子生物学技术的进展,PCR相关方法越来越多地被应用到真菌学研究中来,而真菌DNA的提取是包括分子诊断在内的所有实验的基础,简便快捷地提取真菌DNA,且获得的DNA完整、纯度高,对真菌分子生物学的研究有及其重要的意义。
2020.12.21
高通量组织研磨仪研磨小鼠胫骨,人体关节软骨,韧带组织
研磨破碎结缔组织(小鼠胫骨,人体关节软骨,韧带组织)
2020.12.21
高通量组织研磨仪针对果蝇RNA提取的研磨方法
实验目的 对果蝇进行研磨,提取其RNA。
2020.12.21
Tissuelyser研磨机教你r如何高通量测定样品的重金属含量?
测定样品中的重金属含量,首要条件就是保证样品实验全程不接触到任何金属材质的物品;若是处理少量样品,使用陶瓷研钵即可很好处理样品;但碰上高通量样品处理时,使用常规的研磨器械,总免不了让样品接触到金属材质的器具;如果样品还是较难研磨的韧性样品,那实验操作起来就相当棘手。
2020.12.21
关于研磨药物的实验使用高通量组织研磨仪有何不同的效果
对于国际生命科学发展的前沿领域以及药物研究是重要科学问题,开展创新药物基础和应用基础研究,发展药物研究新理论、新方法和新技术。重点围绕治疗恶性肿瘤、心脑血管系统疾病、神经精神系统疾病、代谢性疾病、自身免疫性疾病及感染性疾病等开展新药研发,并加强现代中药的研发。
2020.12.21
高通量组织研磨仪对多酚含量高的植物(木本植物)的细胞破壁
研磨破碎多酚含量高的植物(木本植物),后续可提取其核酸或蛋白。
